Terraelino Pepe

Product overview

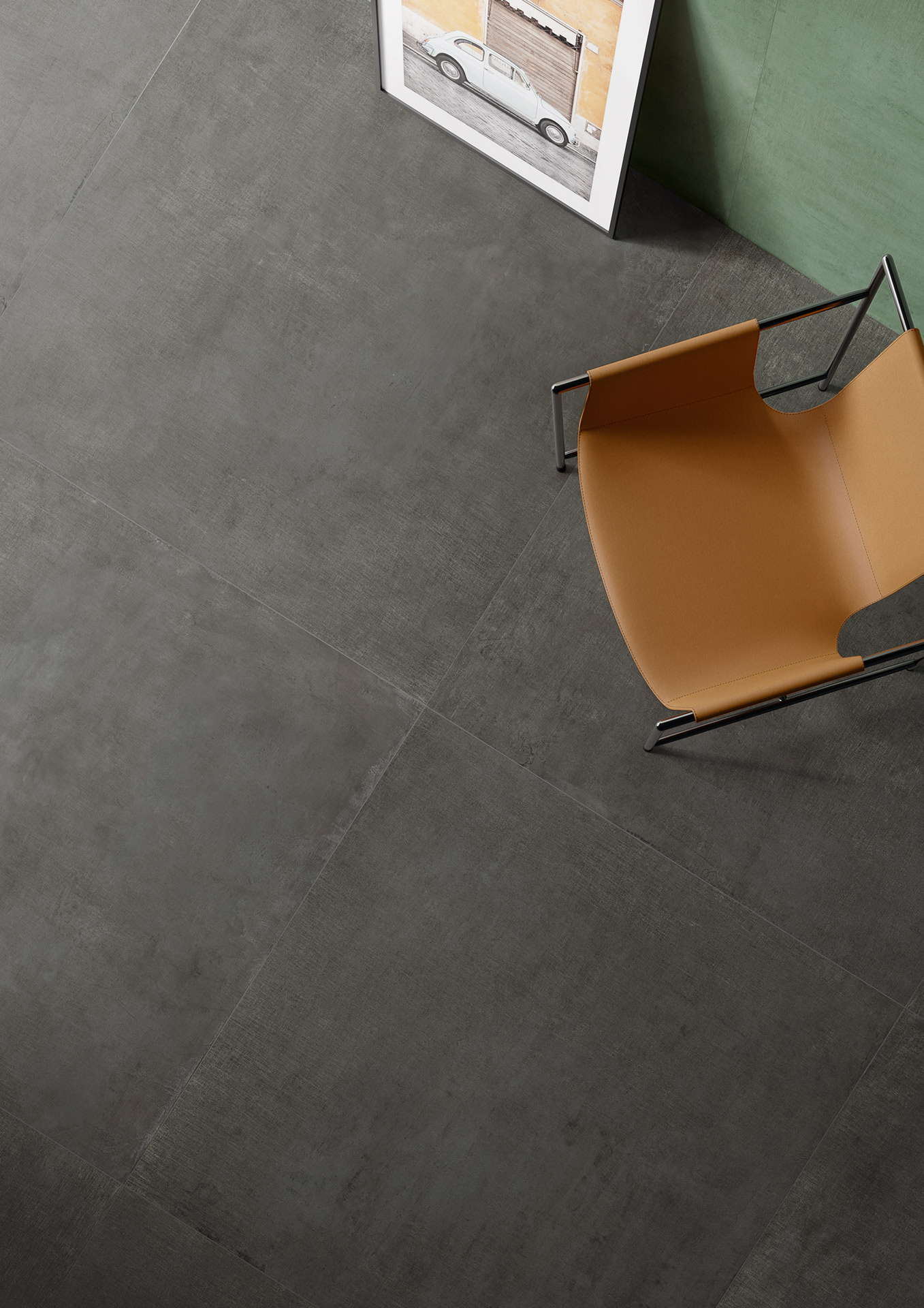

Terraelino Pepe

Terrælino was born from the inspiration to create a symbiosis between earth and linen, a primitive element and a refined fabric. Natural materials that enrich each other, brought together by the craftsmanship of the designer searching for a new kind of surface.
The result is a warm and vivid material, defined in five colors in 6 sizes referring to the earth and four colors inspired by fruits and spices.
A material devised to inspire professionals and welcome any application.

Color


Sizes


120x240cm
80x160cm
120x120cm
60x120cm
60x60cm
30x60cm

Thickness


9 mm

Specifications


DIMENSIONS AND SURFACE QUALITY
Technical featureStandard method ISONexion valuesRequirements
SIZE < 1200 mmSIZE ≥ 1200 mm
%mm%mm
WidthISO 10545 - 2± 0,1± 0,8± 0,1± 1± 0,3%
Length± 0,1± 0,8± 0,1± 1,2± 0,3%
Thickness± 4± 0,5± 4± 0,5± 5,0%
Straightness of Side± 0,1± 0,8± 0,1± 1± 0,3%
Rectangularity± 0,1± 1,3± 0,1± 1,5± 0,3%
Surface Flatness± 0,1± 1,8± 0,2± 3± 0,4%
Surface Quality95%A minimum of 95% of the tiles are to
be free from visible defects which can
impair the appearance of a major area
of tiles
PHYSICAL PROPERTIES
Technical featureStandard method ISONexion valuesRequirements
Water AbsorptionISO 10545 - 3≤ 0,5%,
Individual 0,6%
Modulus of RuptureISO 10545 - 4Min. 42 N/mm²Min. 35 N/mm²,
Individual Min. 32 N/mm²
Breaking StrengthISO 10545 - 4Min. 1800 NNot less than 1300 N
Moisture ExpansionISO 10545 - 100,02 mm/m-
Surface abrasionISO 10545-7CLASS IVMinimum Class - II Report abrasion class and cycles passed
Mohs Hardness of surfaceNA7
Coefficient of linear thermal
expansion from ambient
temperature to 100 °C
ISO 10545 - 86x10⁻ ⁶ K⁻¹ maxAs declared by the Manufacturer
Thermal Shock ResistanceISO 10545 - 9No damage
Crazing Resistance:
glazed tiles
ISO 10545 - 11No damage for
Min. 10 Cycles
Required
Bulk DensityISO 10545 - 32,2 g/cc2,2 g/cc
Impact ResistanceISO 10545 - 50,55As declared by the Manufacturer
Frost ResistanceISO 10545 - 12No change
Slip ResistanceANSI A137,1
DIN 51130
DCOF > 0,51
R-10
As declared by the Manufacturer
Small colour differencesISO 10545 - 16No changePlain coloured tiles only where required
GL: ∆E < 0,75
UGL: ∆E < 1,0
CHEMICAL PROPERTIES
Technical featureStandard method ISONexion valuesRequirements
Resistance to stainingISO 10545 - 14Class 4Minimum Class 3
Resistance to household
chemicals and swimming pool
salts
ISO 10545 - 13Minimum AMinimum B
Resistance to acids & alkalisMinimum BAs declared by the Manufacturer
