Coniwood Abete
Product overview

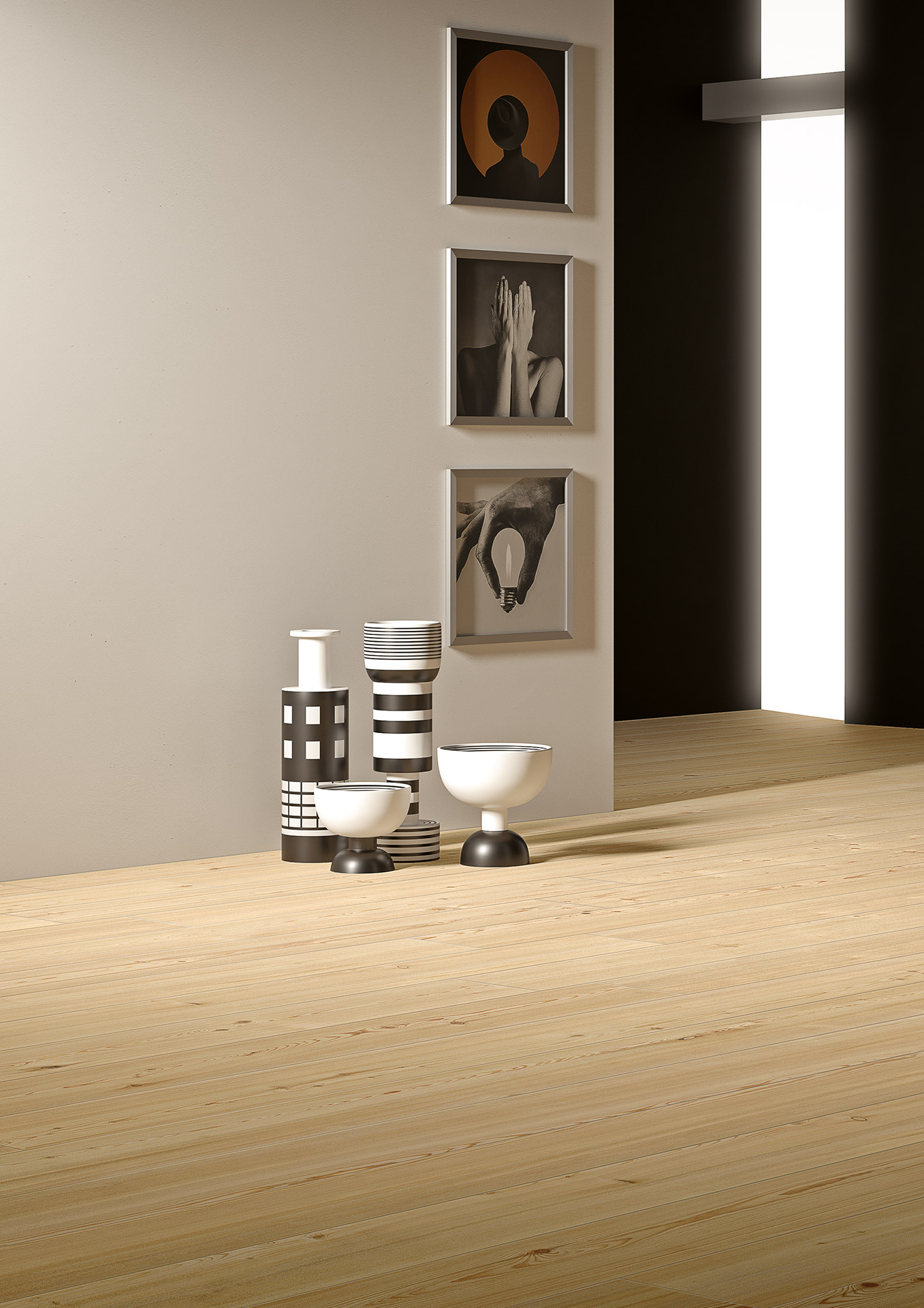

Coniwood Abete
Coniwood brings the peaceful and elegant essence of the trees that make up the fascinating coniferous forests of Europe. It donates an intense sense of warmth and comfort.
Nexion selected some of the nicest and unique examples in the European coniferous forests, designing beautiful planks and creating natural surfaces by the hands of skilled craftsmen.
This is a ceramic collection that returns all the natural flavor, at sight and touch, of natural wood, in an eye-catching contemporary style.
Surfaces
We offer the broadest range of surfaces.
Coniwood Abete is available in:
-
Naturale
Naturale
Absolute Matte
Sizes
20x120cm
Thickness
9 mm
Specifications
DIMENSIONS AND SURFACE QUALITY
Technical feature | Standard method ISO | Nexion values | Requirements | |||
---|---|---|---|---|---|---|
SIZE < 1200 mm | SIZE ≥ 1200 mm | |||||
% | mm | % | mm | |||
Width | ISO 10545 - 2 | ± 0,1 | ± 0,8 | ± 0,1 | ± 1 | ± 0,3% |
Length | ± 0,1 | ± 0,8 | ± 0,1 | ± 1,2 | ± 0,3% | |
Thickness | ± 4 | ± 0,5 | ± 4 | ± 0,5 | ± 5,0% | |
Straightness of Side | ± 0,1 | ± 0,8 | ± 0,1 | ± 1 | ± 0,3% | |
Rectangularity | ± 0,1 | ± 1,3 | ± 0,1 | ± 1,5 | ± 0,3% | |
Surface Flatness | ± 0,1 | ± 1,8 | ± 0,2 | ± 3 | ± 0,4% | |
Surface Quality | 95% | A minimum of 95% of the tiles are to be free from visible defects which can impair the appearance of a major area of tiles |
PHYSICAL PROPERTIES
Technical feature | Standard method ISO | Nexion values | Requirements |
---|---|---|---|
Water Absorption | ISO 10545 - 3 | Avg. ≤ 0,08%, Individual 0,2% |
≤ 0,5%, Individual 0,6% |
Modulus of Rupture | ISO 10545 - 4 | Min. 42 N/mm² | Min. 35 N/mm², Individual Min. 32 N/mm² |
Breaking Strength | ISO 10545 - 4 | Min. 1800 N | Not less than 1300 N |
Moisture Expansion | ISO 10545 - 10 | 0,02 mm/m | - |
Surface abrasion | ISO 10545-7 | CLASS IV | Minimum Class - II Report abrasion class and cycles passed |
Mohs Hardness of surface | NA | 7 | |
Coefficient of linear thermal expansion from ambient temperature to 100 °C |
ISO 10545 - 8 | 6x10⁻ ⁶ K⁻¹ max | As declared by the Manufacturer |
Thermal Shock Resistance | ISO 10545 - 9 | No damage | |
Crazing Resistance: glazed tiles |
ISO 10545 - 11 | No damage for Min. 10 Cycles |
Required |
Bulk Density | ISO 10545 - 3 | 2,2 g/cc | 2,2 g/cc |
Impact Resistance | ISO 10545 - 5 | 0,55 | As declared by the Manufacturer |
Frost Resistance | ISO 10545 - 12 | No change | |
Slip Resistance | ANSI A137,1 DIN 51130 |
DCOF > 0,51 R-10 |
|
Small colour differences | ISO 10545 - 16 | No change | Plain coloured tiles only where required GL: ∆E < 0,75 UGL: ∆E < 1,0 |
CHEMICAL PROPERTIES
Technical feature | Standard method ISO | Nexion values | Requirements |
---|---|---|---|
Resistance to staining | ISO 10545 - 14 | Class 4 | Minimum Class 3 |
Resistance to household chemicals and swimming pool salts |
ISO 10545 - 13 | Minimum A | Minimum B |
Resistance to acids & alkalis | Minimum B | As declared by the Manufacturer |
