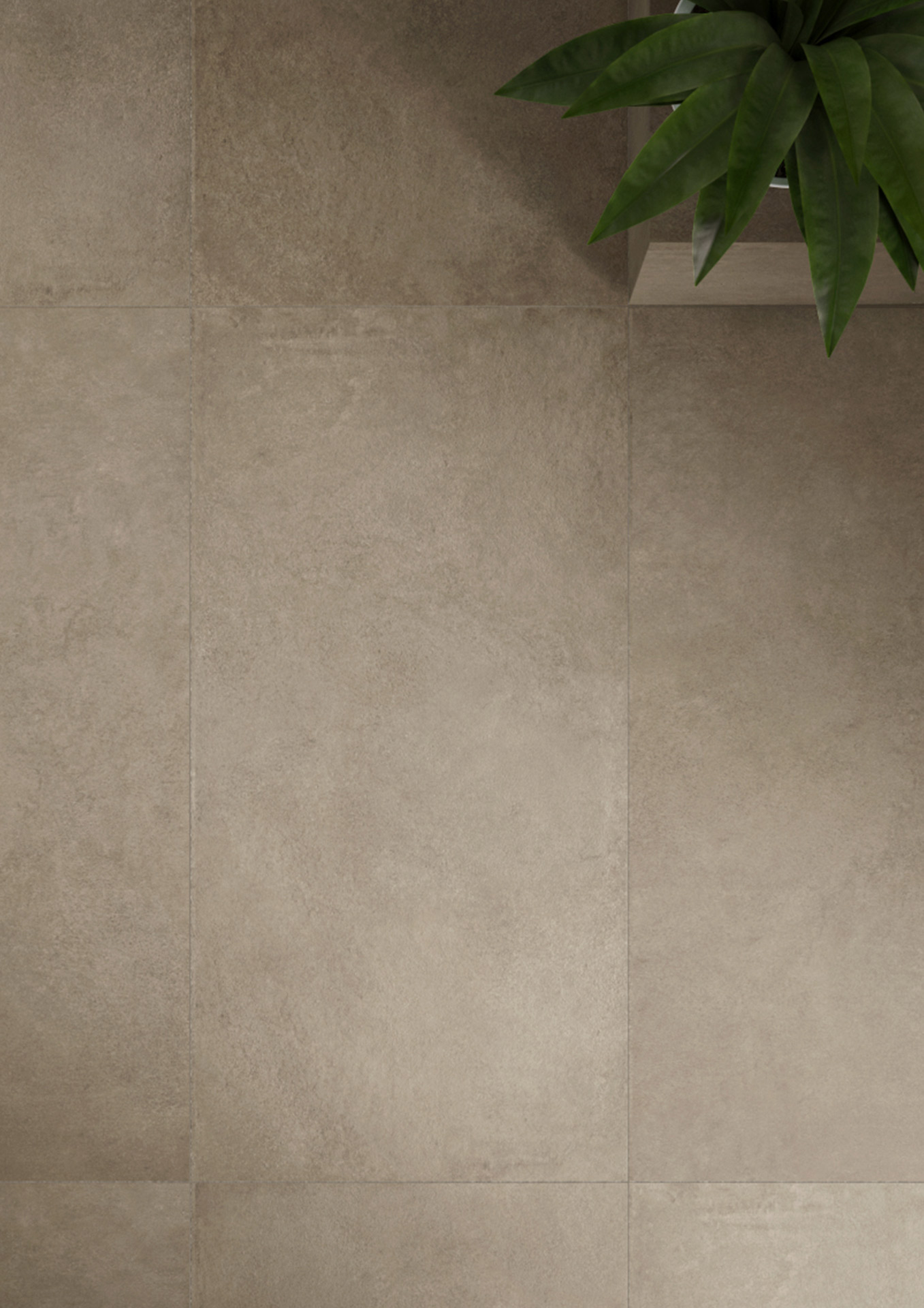

Ambient Beige Medio

Product overview

A minimalist way

The Ambient collection offers a new ceramic interpretation of cement, a cornerstone of modern and contemporary architecture, a mix of engineering strength with expressive essentiality.

Nexion reinterpreted its original source in a minimalist way, mixing superior performance with aesthetic appeal.

The results are surfaces with excellent performance that gives the impression of being solid color with a slight ripple while, but looking closer they are distinguished by a slight grit perceived by our hand.

Sizes


120x120cm
120x240cm
30x60cm
60x120cm
60x60cm
80x160cm
80x80cm

Thickness


9 mm

Specifications


DIMENSIONS AND SURFACE QUALITY
Technical feature Standard method ISO Nexion values Requirements
SIZE < 1200 mm SIZE ≥ 1200 mm
% mm % mm
Width ISO 10545 - 2 ± 0,1 ± 0,8 ± 0,1 ± 1 ± 0,3%
Length ± 0,1 ± 0,8 ± 0,1 ± 1,2 ± 0,3%
Thickness ± 4 ± 0,5 ± 4 ± 0,5 ± 5,0%
Straightness of Side ± 0,1 ± 0,8 ± 0,1 ± 1 ± 0,3%
Rectangularity ± 0,1 ± 1,3 ± 0,1 ± 1,5 ± 0,3%
Surface Flatness ± 0,1 ± 1,8 ± 0,2 ± 3 ± 0,4%
Surface Quality 95% A minimum of 95% of the tiles are to
be free from visible defects which can
impair the appearance of a major area
of tiles
PHYSICAL PROPERTIES
Technical feature Standard method ISO Nexion values Requirements
Water Absorption ISO 10545 - 3 ≤ 0,5%,
Individual 0,6%
Modulus of Rupture ISO 10545 - 4 Min. 42 N/mm² Min. 35 N/mm²,
Individual Min. 32 N/mm²
Breaking Strength ISO 10545 - 4 Min. 1800 N Not less than 1300 N
Moisture Expansion ISO 10545 - 10 0,02 mm/m -
Surface abrasion ISO 10545-7 CLASS IV Minimum Class - II Report abrasion class and cycles passed
Mohs Hardness of surface NA 7
Coefficient of linear thermal
expansion from ambient
temperature to 100 °C
ISO 10545 - 8 6x10⁻ ⁶ K⁻¹ max As declared by the Manufacturer
Thermal Shock Resistance ISO 10545 - 9 No damage
Crazing Resistance:
glazed tiles
ISO 10545 - 11 No damage for
Min. 10 Cycles
Required
Bulk Density ISO 10545 - 3 2,2 g/cc 2,2 g/cc
Impact Resistance ISO 10545 - 5 0,55 As declared by the Manufacturer
Frost Resistance ISO 10545 - 12 No change
Slip Resistance ANSI A137,1
DIN 51130
As declared by the Manufacturer DCOF > 0,51
R-10
Small colour differences ISO 10545 - 16 No change Plain coloured tiles only where required
GL: ∆E < 0,75
UGL: ∆E < 1,0
CHEMICAL PROPERTIES
Technical feature Standard method ISO Nexion values Requirements
Resistance to staining ISO 10545 - 14 Class 4 Minimum Class 3
Resistance to household
chemicals and swimming pool
salts
ISO 10545 - 13 Minimum A Minimum B
Resistance to acids & alkalis Minimum B As declared by the Manufacturer
