Ambient Beige Chiaro
Product overview
A minimalist way

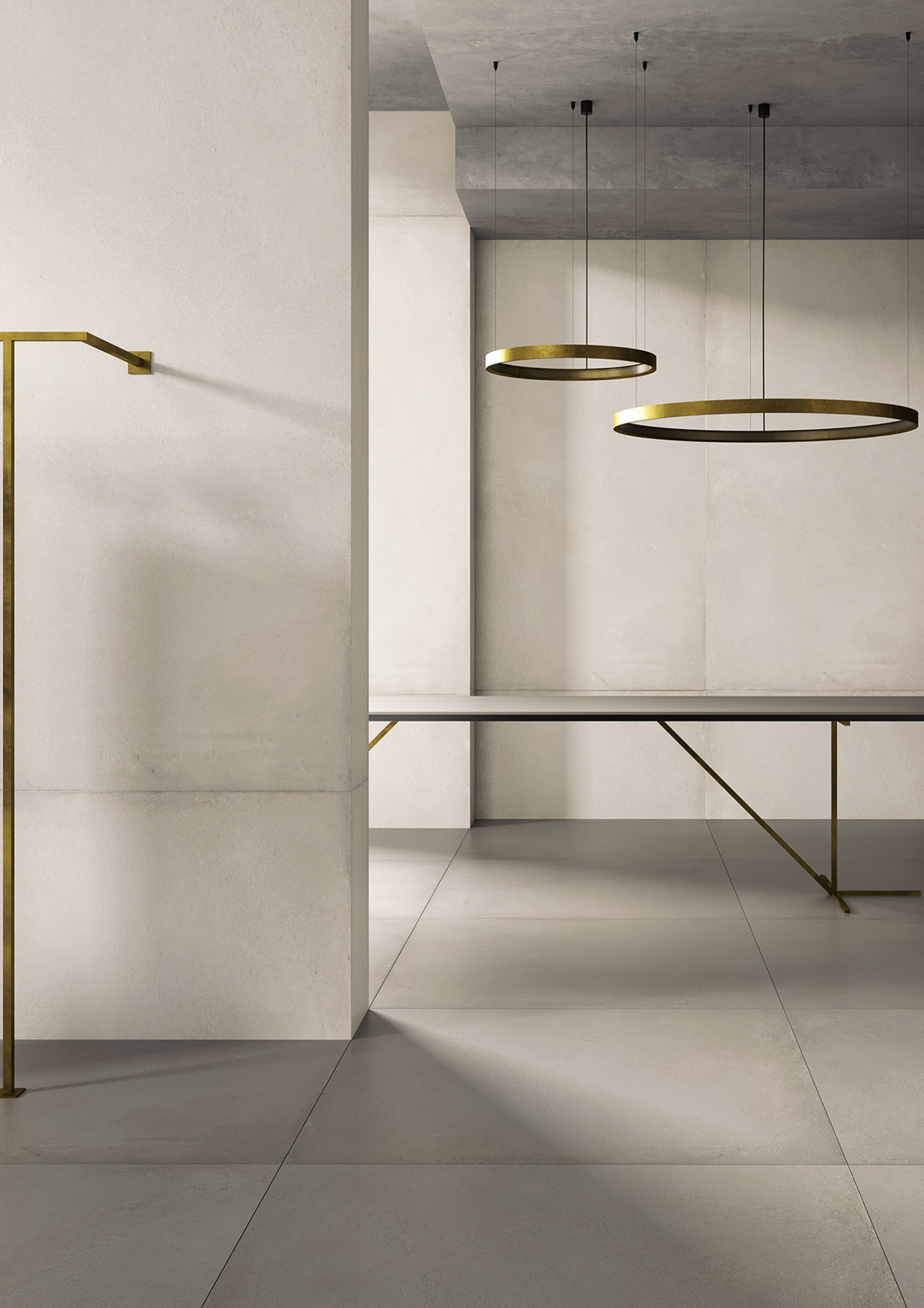

The Ambient collection offers a new ceramic interpretation of cement, a cornerstone of modern and contemporary architecture, a mix of engineering strength with expressive essentiality.
Nexion reinterpreted its original source in a minimalist way, mixing superior performance with aesthetic appeal.
The results are surfaces with excellent performance that gives the impression of being solid color with a slight ripple while, but looking closer they are distinguished by a slight grit perceived by our hand.
Surfaces
We offer the broadest range of surfaces.
Ambient Beige Chiaro is available in:
-
Naturale
Naturale
Absolute Matte
-
Naturale
-
Absolute Matte
Sizes
120x240cm
80x160cm
120x120cm
60x120cm
60x60cm
30x60cm
Thickness
9 mm
Specifications
DIMENSIONS AND SURFACE QUALITY
Technical feature | Standard method ISO | Nexion values | Requirements | |||
---|---|---|---|---|---|---|
SIZE < 1200 mm | SIZE ≥ 1200 mm | |||||
% | mm | % | mm | |||
Width | ISO 10545 - 2 | ± 0,1 | ± 0,8 | ± 0,1 | ± 1 | ± 0,3% |
Length | ± 0,1 | ± 0,8 | ± 0,1 | ± 1,2 | ± 0,3% | |
Thickness | ± 4 | ± 0,5 | ± 4 | ± 0,5 | ± 5,0% | |
Straightness of Side | ± 0,1 | ± 0,8 | ± 0,1 | ± 1 | ± 0,3% | |
Rectangularity | ± 0,1 | ± 1,3 | ± 0,1 | ± 1,5 | ± 0,3% | |
Surface Flatness | ± 0,1 | ± 1,8 | ± 0,2 | ± 3 | ± 0,4% | |
Surface Quality | 95% | A minimum of 95% of the tiles are to be free from visible defects which can impair the appearance of a major area of tiles |
PHYSICAL PROPERTIES
Technical feature | Standard method ISO | Nexion values | Requirements |
---|---|---|---|
Water Absorption | ISO 10545 - 3 | ≤ 0,5%, Individual 0,6% |
|
Modulus of Rupture | ISO 10545 - 4 | Min. 42 N/mm² | Min. 35 N/mm², Individual Min. 32 N/mm² |
Breaking Strength | ISO 10545 - 4 | Min. 1800 N | Not less than 1300 N |
Moisture Expansion | ISO 10545 - 10 | 0,02 mm/m | - |
Surface abrasion | ISO 10545-7 | CLASS IV | Minimum Class - II Report abrasion class and cycles passed |
Mohs Hardness of surface | NA | 7 | |
Coefficient of linear thermal expansion from ambient temperature to 100 °C |
ISO 10545 - 8 | 6x10⁻ ⁶ K⁻¹ max | As declared by the Manufacturer |
Thermal Shock Resistance | ISO 10545 - 9 | No damage | |
Crazing Resistance: glazed tiles |
ISO 10545 - 11 | No damage for Min. 10 Cycles |
Required |
Bulk Density | ISO 10545 - 3 | 2,2 g/cc | 2,2 g/cc |
Impact Resistance | ISO 10545 - 5 | 0,55 | As declared by the Manufacturer |
Frost Resistance | ISO 10545 - 12 | No change | |
Slip Resistance | ANSI A137,1 DIN 51130 |
DCOF > 0,51 R-10 |
As declared by the Manufacturer |
Small colour differences | ISO 10545 - 16 | No change | Plain coloured tiles only where required GL: ∆E < 0,75 UGL: ∆E < 1,0 |
CHEMICAL PROPERTIES
Technical feature | Standard method ISO | Nexion values | Requirements |
---|---|---|---|
Resistance to staining | ISO 10545 - 14 | Class 4 | Minimum Class 3 |
Resistance to household chemicals and swimming pool salts |
ISO 10545 - 13 | Minimum A | Minimum B |
Resistance to acids & alkalis | Minimum B | As declared by the Manufacturer |
